024 Dashboard CAN Filter Type A

024 Dashboard CAN Filter Type A

Product Description

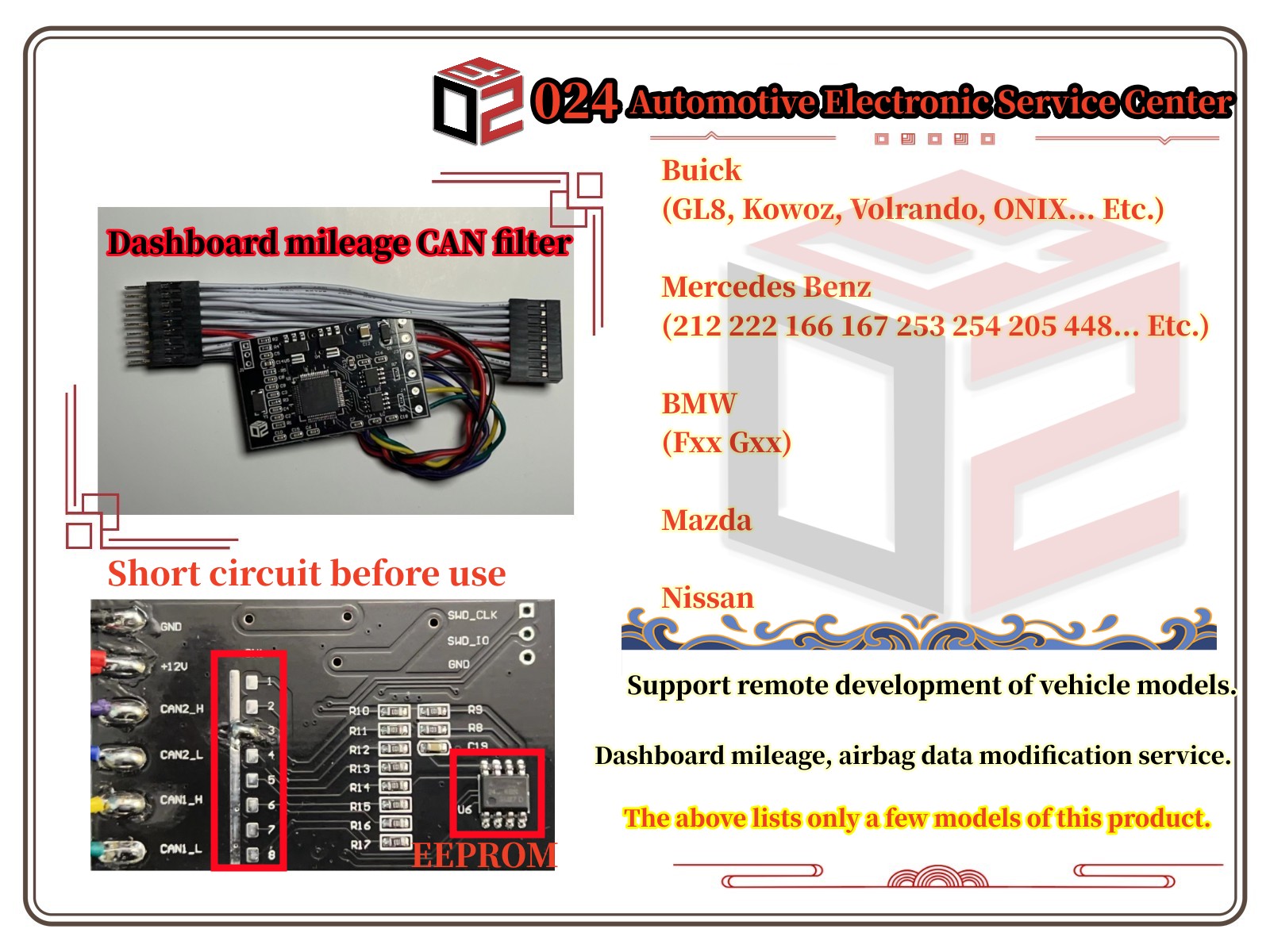

024 Dashboard CAN Filter Type A is a professional device designed for automotive instrument cluster CAN-BUS signal processing and filtering.
It is suitable for multi-brand and multi-platform vehicles, and is widely used in instrument cluster stabilization, diagnostics, repair, testing, and automotive electronics R&D.

The product is installed directly on the instrument cluster CAN communication lines, where it intelligently filters and processes specific CAN signals to improve system stability, data consistency, and operational reliability.

Key Features

• Supports multiple vehicle brands and CAN-BUS architectures

• Plug-and-play design for easy installation

• Hardware-level CAN signal filtering and processing

• High stability with fast response

• Suitable for repair, modification, testing, and R&D applications

Supported Mercedes-Benz Platforms (18 Chassis Types)

• S-Class (W222 / W221)

• C-Class (W205 / W204)

• V-Class (W447)

• E-Class (W212 / W207)

• A-Class (W176)

• G-Class (W463)

• M-Class / GLE (W166)

• SL-Class (R231)

• GL-Class / GLS (X166)

• B-Class (W246)

• CLS-Class (W218)

• SLK-Class (R172)

• SLS AMG (W197)

• CLA-Class (W117)

• GLK-Class (X204)

Supported BMW Platforms

Supported systems:

• CAS4 / CAS4+

• FEM Fxx

• BDC

• BMW MINI

• G-Series platforms

Supported models include:

• BMW 1 Series F2X

• BMW 3 Series F3X

• BMW X5 (FEM platform – no need to remove FEM module, installation at instrument cluster)

• BMW 5 Series F10

• BMW 7 Series F01 / F02

CAS4 Fxx platform coverage:
F01 / F02 / F07 / F18 / F10 / F20 / F25 / X3, etc.

• Supported MCU: 9S12 XEP series (5M48H / 1N35H)

Supported Buick Models

• Buick GL8

• Buick GL6

• Buick Onix

• Buick Velite 6

• Buick Velite 7

• Buick Encore

• Buick Encore GX

• Buick Orlando

Supported BAIC Models

• BAIC X65

Supported Roewe / SAIC Models

• Roewe 550

Supported Nissan Models

• Nissan Note

• Nissan Sylphy

• Nissan Rogue

• Nissan X-Trail

• Nissan Pathfinder

Supported Mitsubishi Models

• Mitsubishi Outlander

Supported Mazda Models

• Mazda 3

• Mazda CX-5

More Supported Models

Additional vehicle models are supported.
Please contact sales staff for confirmation.

Usage Disclaimer

This product is intended only for legal vehicle repair, testing, automotive electronics development, and educational purposes.
Users must comply with local laws and regulations. Installation and operation are recommended to be performed by qualified automotive electronics professionals.
